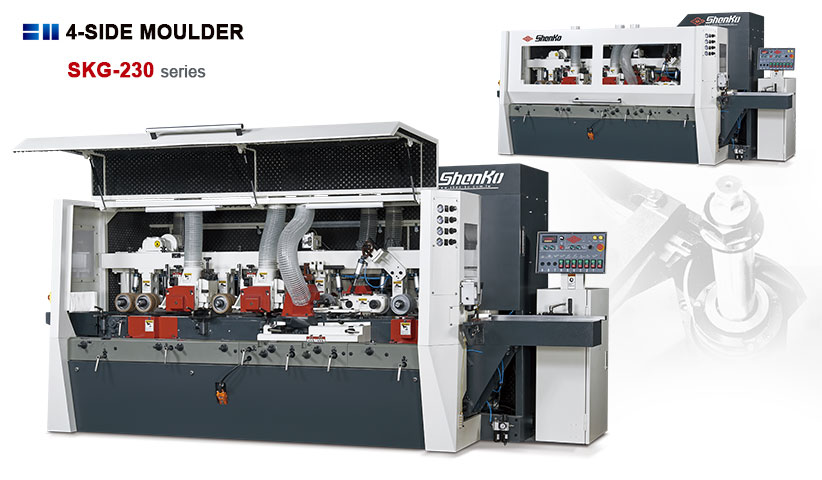

  • The SKG series is designed for solving your problem of hard material cutting. The series of machine is capable of cutting various wood materials. Especially for extra hard wood, moisturized wood and warped wood, the machine feeds wood smoothly while reducing wood jamming minimum.

FEATURE

自動送料設備

Automatic Feeding Device (Optional)

This device can feed the workpiece into the machine for processing instead of hand feed. It can increase the production and keep the operator from danger. The most important is the operator has enough time to choose the better surface to process and get the perfect finish.

Universal Spindle ( Optional )

Angled Vertical Spindle ±20° (Optional)

Front and Rear Pressure Device for Upper Spindle

Front And Rear Pressure Device for Upper Spindle



Driven Table Roller

Driven table rollers reduce table wear out and guarantee the feed through of workpiece without getting stuck.

Drive Infeed Table Roller

The drive infeed table roller provides maximum smoothness of workpiece feeding for all types of wood material, regardless of highly moisture or extra hard materials.

Inverter Controlled Feed System

Feed speed via inverter provides positive feed. This machine can adjust the feeding speed according to the actual need. The speed range is 6-36 M/min.

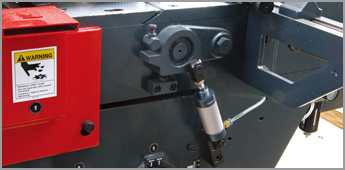

SKG type equip extra pneumatic floating driven table roller. It forces the high moisture timber or hard timber into the machine without stock in front of first bottom spindle.

Spindle

The spindle is supported by two pair of bearing to ensure accurate performance under high speed rotation.


SPECIFICATION

MODEL
SKG-230
Working width min.~max. 15~230 mm
Working height min.~max. 10~150 mm
Infeed table length 1.2 M
Motor horse power 10 HP/15 HP
Feeding power 7.5 HP
Feeding speed 6~36 M/min
Diameter of spindle 40 mm (Opt. 50mm)
Spindle speed 6,000 RPM
Tool diameter of first bottom spindle 100~160 mm
Tool diameter of vertical spindle 100~180 mm
Tool diameter of horizontal spindle 100~180 mm
Adjustment range of straightening table and edge-joint 10 mm
Adjustment of vertical spindle 50 mm
Adjustment of horizontal spindle 30 mm
Diameter of feeding roller 140 mm x ø35 mm
Width of steel feed roller 25 mm
Width of steel feed rollers opposite left spindle 20 mm
Width of rubber feed roller 50 mm
Max. cutting capacity for 1st bottom spindle 10 mm
Max. cutting capacity for 2st right vertical spindle 10 mm



• Hard chrome plated table.

• Specifications and design features are subject to change without notice.


SPINDLE ARRANGEMENT FIGURES
