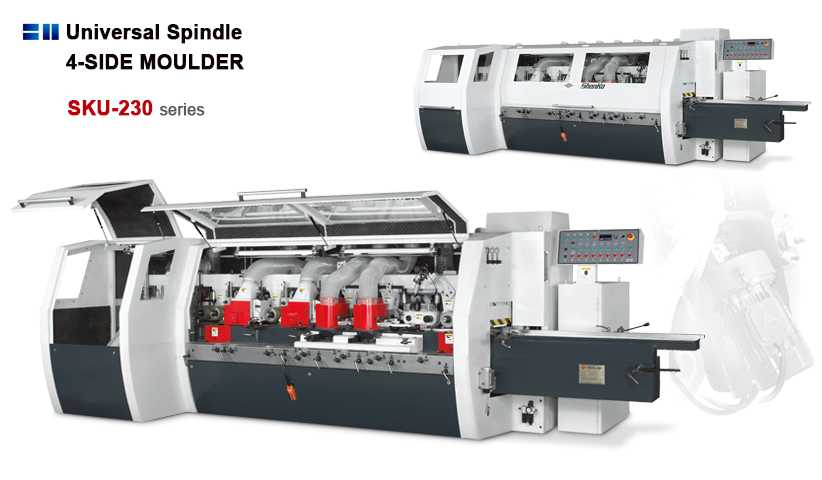

  • The exclusive feature that distinguishes the SKU series from competitors is the innovative universal spindle. The specially designed universal spindle can be adjusted to any angle as desired to fully meet cutting requirement. Now, with the SKU series, any hard to reach angle can be easily cut to achieve the maximum flexibility of cutting.

FEATURE

Universal Spindle

Driven Table Roller

Driven table rollers reduce table wear out and guarantee the feed through of workpiece without getting stuck.

Drive Infeed Table Roller

The drive infeed table roller provides maximum smoothness of workpiece feeding for all types of wood material, regardless of highly moisture or extra hard materials.

Spindle

The spindle is supported by two pair of bearing to ensure accurate performance under high speed rotation.

Inverter Controlled Feed System

Feed speed via inverter provides positive feed. This machine can adjust the feeding speed according to the actual need. The speed range is 6-36 M/min.

Universal Spindle

The universal spindle can process work piece in any position, especially in some angle that vertical spindle and horizontal spindle hard to process.
  SPECIFICATION

MODEL
SKU-230
SKGU-230
Working width min.~max. 10~230 mm 10~230 mm
Working height min.~max. 10~150 mm 10~150 mm
Infeed table length 2 M 1.2 M
Motor horse power 10 HP & 15 HP 10 HP & 15 HP
Feeding power 7.5 HP 7.5 HP
Feeding speed 6~36 M/min 6~36 M/min
Diameter of spindle 40 mm (Opt. 50 mm) 40 mm (Opt. 50 mm)
Spindle speed 6,000 RPM 6,000 RPM
Tool diameter of first bottom spindle 100~150 mm 100~150 mm
Tool diameter of vertical spindle 100~180 mm 100~180 mm
Tool diameter of horizontal spindle 100~180 mm 100~180 mm
Adjustment range of straightening table and edge-joint 10 mm 10 mm
Adjustment of vertical spindle 50 mm 50 mm
Adjustment of horizontal spindle 30 mm 30 mm
Diameter of feeding roller 140 mm x ø35 mm 140 mm x ø35 mm
Width of steel feed roller 25 mm 25 mm
Width of steel feed rollers opposite left spindle 20 mm 20 mm
Width of rubber feed roller 50 mm 50 mm
Max. cutting capacity for 1st bottom spindle 10 mm 10 mm
Max. cutting capacity for 2st right vertical spindle 10 mm 10 mm



• Hard chrome plated table.

• Specifications and design features are subject to change without notice.

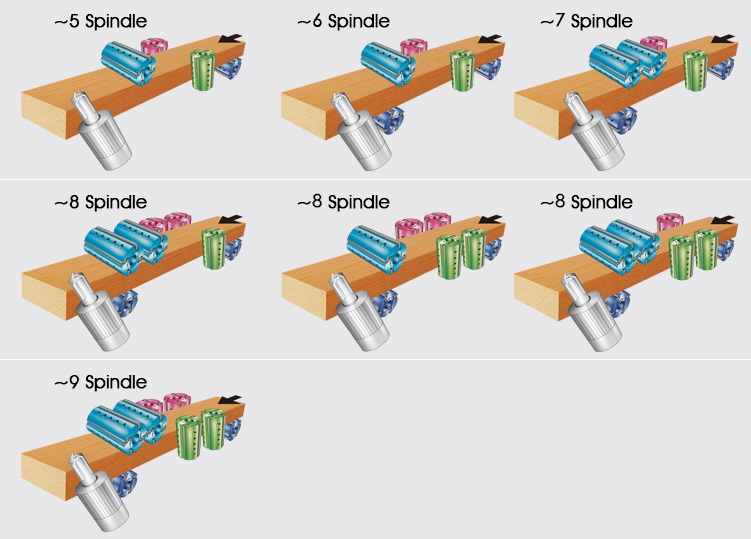

SPINDLE ARRANGEMENT FIGURES
