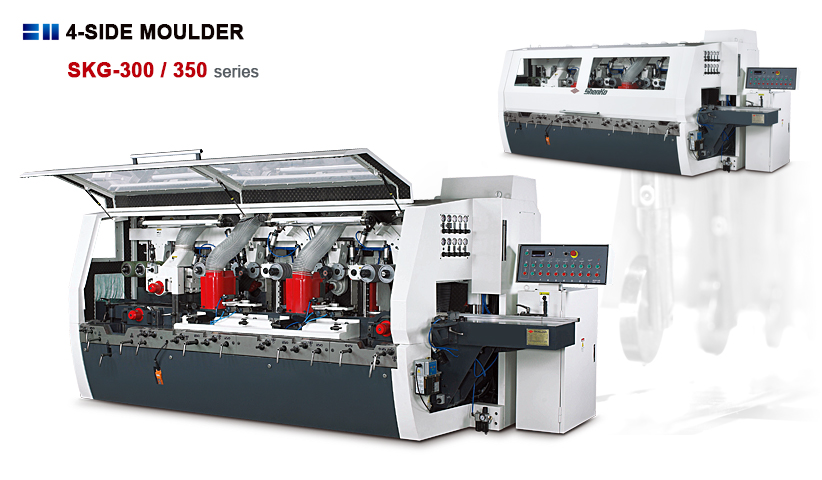

  • In addition to integrating all features on the SKG series, the function of SKG-300 / SKG-350 is greatly upgraded. The increased width of cutting capacity allows the SKG-300 / SKG-350 to cut wider panel. Furthermore, the special equipment is provided on each horizontal spindle for achieving the best finish on the surface after cut.

FEATURE


Pneumatic Pressure Side Wheel at Infeed Table

Eliminate the use of conventional spring load, the side pressure wheel is loaded by air system. This feature not only provides higher pressure, but also allows for flexible adjustment of pressure. No elastic fatigue occurs. The air loaded side pressure makes the machine ideal for high speed cutting operations.

Upper horizontal Out Broad Bearing Device

The device provides extra support for horizontal spindle to get better cutting performance and perfect finish quality.

Bottom horizontal Out Broad Bearing Device

The device provides extra support for horizontal spindle to get better cutting performance and perfect finish quality.

Spindle

The spindle is supported by two pair of bearing to ensure accurate performance under high speed rotation.

Pneumatic Pressure Device at Opposite Side for Right Spindle



Pneumatic Pressure Device for Top Spindle




SPECIFICATION

MODEL
SKG-300
SKG-350
Working width min.~max. 20~310 mm 25~350 mm
Working height min.~max. 10~150 mm (Opt. 200mm) 10~150 mm (Opt. 200mm)
Straightening table length (Hard chrome plated) 1.2 M 1.2 M
Spindle power 15 HP & 20 HP 15 HP & 20 HP
Feeding power 7.5 HP 7.5 HP
Feeding speed 6~36 M/min 6~36 M/min
Diameter of spindle 50 mm 50 mm
Spindle speed 6,000 RPM 6,000 RPM
Diameter of cutter for 1st bottom spindle 125~180 mm 125~180 mm
Diameter of cutter for vertical spindle 125~180 mm 125~180 mm
Diameter of cutter for horizontal spindle 125~230 mm 125~230 mm
Adjustment range of straightening table 10 mm 10 mm
Adjustment of vertical spindle 50 mm 50 mm
Adjustment of horizontal spindle 30 mm 30 mm
Diameter of feeding roller 140 mm x ø35 mm 140 mm x ø35 mm
Width of steel feed roller 25 mm 25 mm
Width of steel feed rollers opposite left spindle 20 mm 20 mm
Width of rubber feed roller 50 mm 50 mm
Max. cutting capacity for 1st bottom spindle 10 mm 10 mm
Max. cutting capacity for 2st right vertical spindle 10 mm 10 mm



• Hard chrome plated table.

• Specifications and design features are subject to change without notice.


SPINDLE ARRANGEMENT FIGURES
