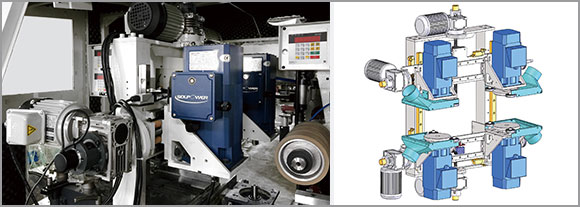

Chamfering Device
• Be able to make a wood processing chamfer molding at once, don’t need another machine chamfering.
• Can be chamfer along the bent wood, will not change chamfer angle because of wood bending.
• Optional digital readout adjustment, simple and quick.
• Chamfering high-frequency motor with high horsepower, can process a large area.
• Gantry slide structure, to stabilize the precision processing.
Telescopic Feed Roller
The feed rollers opposite left spindle are adjustable according to the width of the workpiece. This device suits for the wood flooring manufacturer and picture frame manufacturer.
Digital Readout for Spindle Adjustment
A spindle driven by a large horsepower normally requires effort in adjustment. However with the digital readout control, spindle movement is faster and spindle adjustment is more convenient.
Automatic Lubricator
Unlike inconvenient lubrication on a hand lubricator, this automatic lubricator allows for setting lubrication times, oil flow and lubrication frequency. It upgrades the convenience of machine operation and maintenance.
Air Loaded Pressure Device for Top Spindle
Eliminate the use of conventional spring load; the pressure device for top spindle is loaded by air system. This feature net only provides high pressure, but also allows for flexible adjustment of pressure. No elastic fatigue occurs. The air loaded pressure device makes the machine ideal for high speed cutting operations.

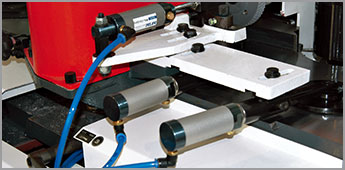

Air Loaded Pressure Device at Opposite Side for Right Spindle
Eliminate the use of conventional spring load; the pressure device for right spindle is loaded by air system. This feature net only provides high pressure, but also allows for flexible adjustment of pressure. No elastic fatigue occurs. The air loaded pressure device makes the machine ideal for high speed cutting operations.
Angled Vertical Spindle ±20°
High Speed Spindle (8,000 R.P.M.)

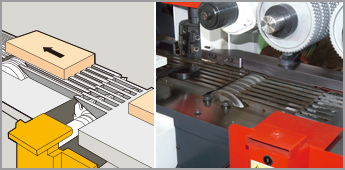

Groove Guide Table
Moulder machine equip with groove guide table can process short timber or twisted timber.
Multiple Saw Blades (Increased spindle horsepower: 20HP, 30HP, 40HP)
The machine can be equipped with multiple sawblades for ripping wood to desired thickness. Maximum working height is 50mm. Applicable maximum sawblade diameter is 255mm.

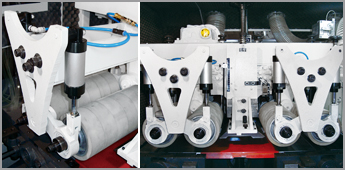

Double Side Air Loaded Feed Rollers
(Incl. External Bearing Support)
Suitable for working width over 400mm, these feed rollers provide stable feeding and more uniform feeding with double side pressure. They are ideal for both planning and sawing operations.
Double Side Air Loaded Feed Rollers
(Incl. External Bearing Support)
Suitable for working width over 400mm, these feed rollers provide stable feeding and more uniform feeding with double side pressure. They are ideal for both planning and sawing operations.
Pneumatic Auxiliary Pressure Wheel
Up request, the machine is available to fit with an auxiliary pressure wheel in front of the vertical spindle for upgrading cutting stability. Eliminating the conventional spring loading, the auxiliary pressure wheel on the machine is specially designed with air cylinder loading.
LCD digital screen display synchronous adjusts the front and rear pressure plate combination of upper spindle.
The front and rear pressure plate of the upper spindle can synchronous adjust the height and width of the pressure plate according to the outer diameter of the cutter tool, with the LCD digital screen display and the memory height and width of front and rear pressure plate.
The front and rear pressure plate of the upper spindle is displayed with a 3.5-inch color touch screen
Immediate display the current height position of the front and rear pressure plate of the upper spindle and the target height position of the module. When the two groups are different, the red light will be displayed to remind you that the pressure plate position should be manually adjusted. When adjusted to the same position, the adjustment is completed with a green light.
Convenient operation and save adjustment time to increasing productivity.
Modular memory front and rear pressure plate height position.
Quick and easy adjust to the memory module position.
Tooling Measuring instrument
Machine size : 1200x850x1750 mm
Gross weight : 300kg
• Capable of measuring O.D of milling tool: Ø50~180mm, length: 20~250mm.
• Measuring the Max. O.D. and Min. I.D of milling tool.
• The measuring position of mill tool can be adjusted.
• Capable of measuring the run-out position of tool blade tip.
• Features easy operation, standardization, accurate and high speed calculation.
• One single measurement can be completed in few seconds.
Anti-Kickback Device
This device provides a safety guard for operator. When performing slicing operation, sometimes the wood cannot pressed smoothly on the table due to irregular shape or too much bending. This may cause wood kickback to the operator's side when it touches the sawblade. The anti-kickback device is used for stopping the flying wood, and prevents the operator from damaging.

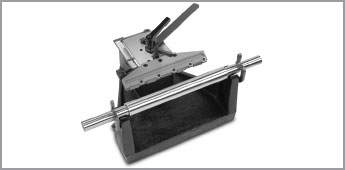

Speedy High Precision Setting Cutter Attachment
Precision setting gauge for planer knives (without corrugations on the back) with arbor.
Technical information: ※ Adjustment Capacity: D100~D210mm. ※ Width 50~310mm.
|
