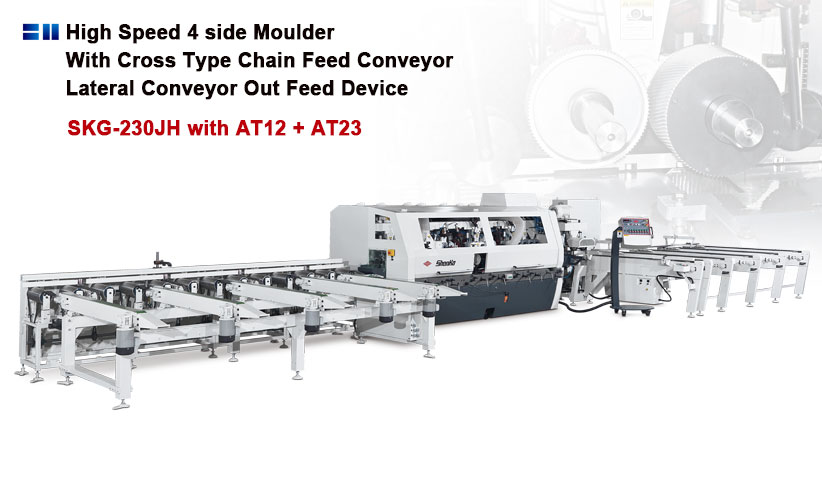

  • The newly developed High Speed Computerized 4-side moulder from Shen Ko is excellent for long wood materials machining, such as construction materials, wall boards and finger jointer materials, etc. Equipped with jointer device and cross type chain feed conveyor table, the machine not only produces extra fine surface of product, but also dramatically increases machining efficiency.

FEATURE

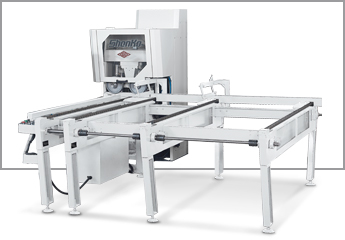

Cross Type Chain Feed Conveyor : AT12

• Feeding width min.~max. : 20~230 mm

• Feeding height min.~max. : 10~150 mm

• Working length : 1,000~5,000 mm

• Material waiting area : 2 M (Available to adjust according to wood size)

• Feeding power : 7.5 HP

• Speed of spindle : 10~120 M/min

• Diameter of feed roller : ø200 mm

• Chain feed motor : 3 HP

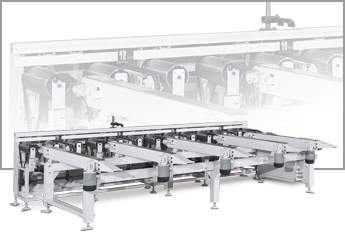

Lateral Conveyor Outfeed Device : AT23

• Feeding width min.~max. : 20~230 mm

• Feeding height min.~max. : 10~150 mm

• Working length : 1,500 mm~Can be customized

• Material waiting area : 2 M (Available to adjust according to wood size)

• Feeding power : 3 HP

• Speed of spindle : 30~140 M/min

• Diameter of feed roller : ø132 mm

• Chain feed motor : 3 HP

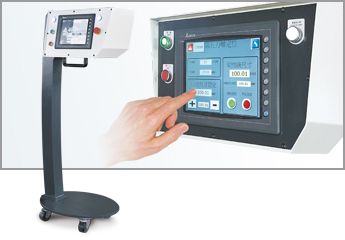

PLC Control in Combination With HMI Touch Screen

• The 10.4" high resolution touch screen.

• Computerized automatic cutter calibration dramatically shortens time of tool calibration.

• Spindle positioning accuracy: 0.01 mm.

• 200 sets of cutter data display.

• 50 sets of memory capacity of production modules.

• Error message display facilitates trouble shooting.

• Also suitable for small lots flexible production mode.

• Spindle arrangement can be varied according to customer's requirement.

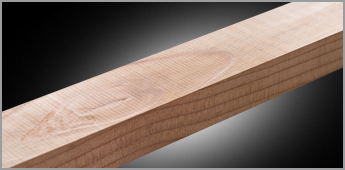

Without jointer device, the timber with clear cutter mark.

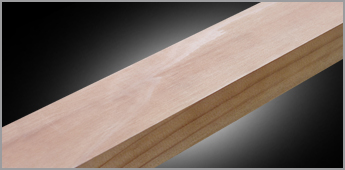

Equip jointer device, the timber without cutter mark under 80 M/min processing.

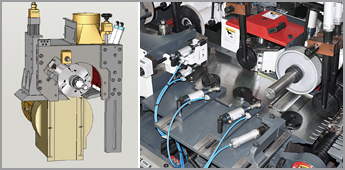

Jointer Device

Jointer device allows the cutter service time to be extended. It also ensures no cutting marks exist on the machining surfaces, while creating extra fine surface finishes.

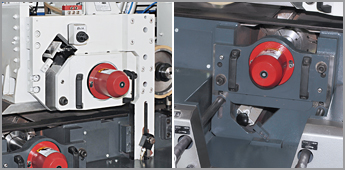

Jointer Device

Jointer device allows the cutter service time to be extended. It also ensures no cutting marks exist on the machining surfaces, while creating extra fine surface finishes.

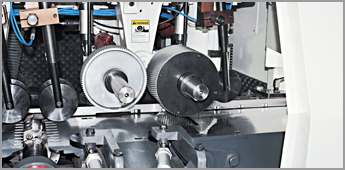

First upper feeding roller

The reinforced top feed roller for the first spindle is equipped with special device to eliminate wood jamming problem.

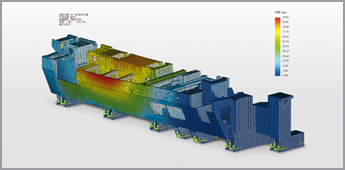

Deformation Analysis of the mechanical structure

The machine structure is subject to Finite Element Analysis, allowing the machine to achieve the optimal stability during running and high quality of machining.

SPECIFICATION

MODEL
SKG-230JH
Working width min.~max. 30~230 mm
Working height min.~max. 10~150 mm
Straightening table length (Hard chrome plated) 1.2 M
Spindle power 20 HP / 25 HP (Opt. 30HP)
Feeding power 20HP / 25HP
Speed of spindle 10~120 M/min
Diameter of spindle 40 mm (Opt. 50 mm)
Feeding speed 6,000 RPM
Diameter of cutter for 1st bottom spindle 125~180 mm
Diameter of cutter for vertical spindle 150~200 mm
Diameter of cutter for horizontal spindle 150~230 mm
Adjustment range of straightening table 10 mm
Adjustment of vertical spindle 50 mm
Adjustment of horizontal spindle 30 mm
Diameter of feed roller 200 mm x ø35 mm
Width of feed roller 50 mm
Width of feed roller opposite to left spindle 20 mm (increased width available)
Width of rubber feed roller 50 mm
Max. cutting capacity for 1st bottom spindle 10 mm



• Jointer device

• Out broad bearing support on horizontal spindle

• Table surface is hard chrome treat

• Specifications and design features are subject to change without notice.

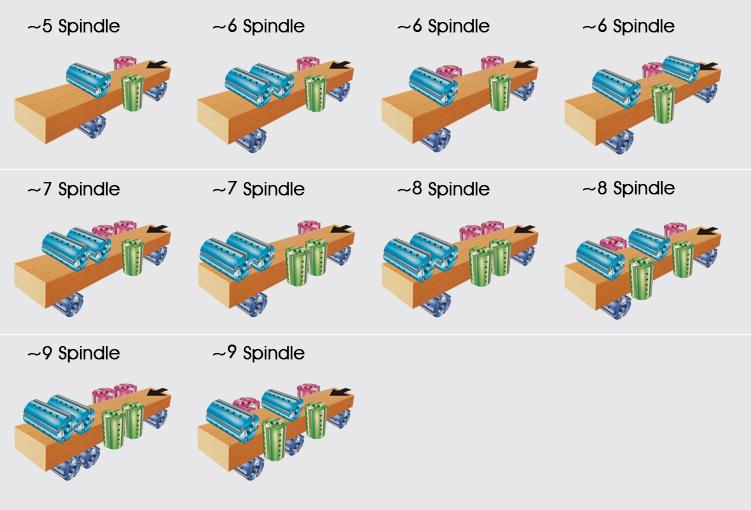

SPINDLE ARRANGEMENT FIGURES
