Touch Controller

  • PLC Control in Combination With HMI Touch Screen
    Exhibits User-friendly Operating, (Touch Controller)

  • • The 21" high resolution touch screen.
  • • Computerized automatic cutter calibration dramatically shortens time of tool calibration.
  • • Spindle positioning accuracy: 0.01 mm.
  • • 200 sets of memory capacity of production modules.
  • • Far end monitoring functions: Far end machine trouble shooting assistance and far end production module management. (Optional)
  • • Error message display facilitates trouble shooting.
  • • Also suitable for small lots flexible production mode.
  • • Spindle arrangement can be varied according to customer's requirement.

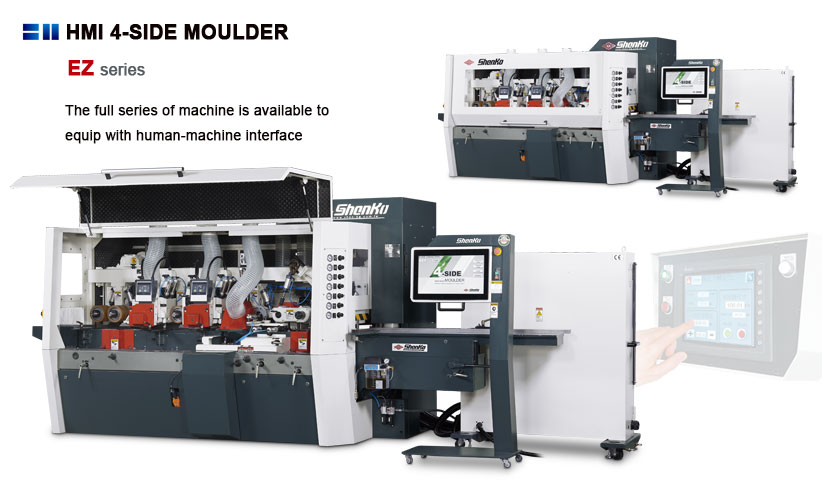

HMI 4-SIDE MOULDER
  • The EZ Series represents Shen Ko's continuous thinking about an easier operation thinking about an easier operation way for our customers. With the human machine Interfacing (HMI) control, you get easier and intuitive operation. This advanced control will help you dramatically boost your productivity.

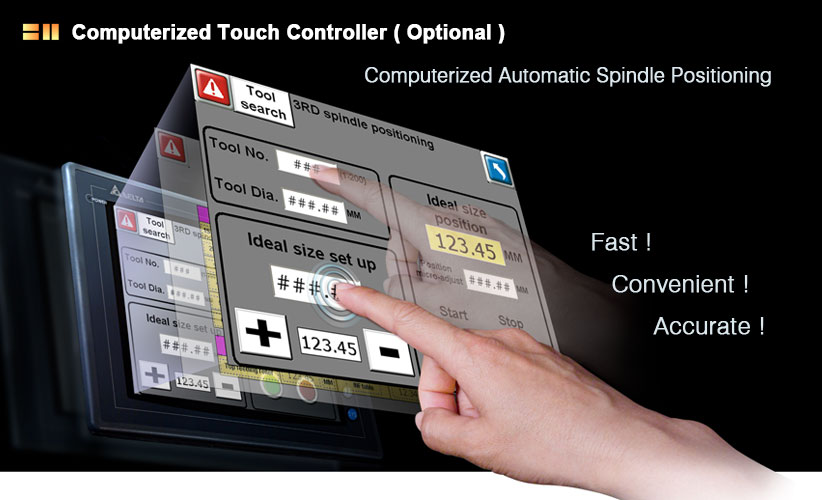

Computerized Automatic Spindle Positioning


Main Menu Display

The main menu display provides 3 operation modes as below:

• For entering into spindle positioning display.

• For entering into production mode display.

• Working light ON/OFF control.

All Cutter Spindle Positioning Display

The operator may select the cutter spindles to be adjusted through this display.

Each Spindle Positioning Display

• This display allows the operator to set spindle position.

• Spindle positioning accuracy: ±0.03 mm.

• In case the entered positioning value is bigger than the rated limit value, the computer will change the value to the allowable maximum value.

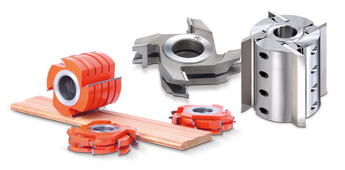

Module Saving Display

• The operator may save cutter data and finished product sizes through this display.

Module Reading Display

• This display shows 50 sets of cutter data and finished product sizes.

All Spindles Positioning Display

• The operator may use this display to perform all spindles positioning simultaneously.

Production Mode Display

• This display provides length calculation function, that allows the operator to understand the current production quantity.

• Feed speed is also set on this display.

Jog Positioning Display

• The jog positioning display provides jog positioning for each spindle and the upper pressure rollers.

Error Message Display

• During operation, if any abnormal motion or trouble occurs, error message will automatically show on this display.

• The error message display enables the operator to understand the cause of error and provides convenience in trouble shooting.

Historic Error Message Display

• This display recorded the error conditions that have ever occurred and the trouble shooting times.

• Recording capacity is of up to 50 sets.

Upper feeding roller Positioning Display

• This display allows the operator to set Upper feeding roller position.

• In case the entered positioning value is bigger than the rated limit value, the computer will change the value to the allowable maximum value.
